In an era where a single micron determines success, Swiss lathes stand as the pinnacle of precision manufacturing. Capable of machining components smaller than a human hair with tolerances tighter than 1/10th the width of a red blood cell, these machines power innovations across critical industries. Let’s dissect their engineering brilliance.
1. Introduction: The Swiss Lathe Advantage

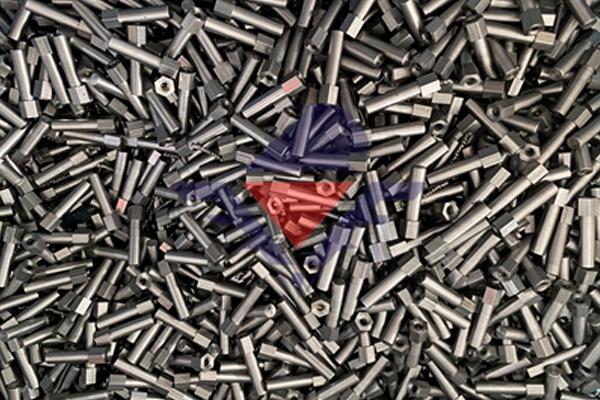

Swiss lathes, or Swiss-type CNC machines, are engineered for parts requiring microscopic precision. Unlike conventional lathes, their unique design enables machining of Ø0.3–32mm components with tolerances down to ±0.0001" (2.5µm). Swiss machining Key applications include:
Medical: Ø0.4mm titanium bone screws with Ra 0.2µm finishes
Aerospace: Inconel 718 fuel nozzles operating at 1,500°F
Electronics: 0.05mm-pitch gold connectors for neural interface devices
2. Historical Evolution: From Watchmaking to AI-Driven Precision
1870s Origins
Developed in Switzerland for watch components like Ø1mm balance wheels, early Swiss lathes achieved 0.01mm precision manually.
20th Century Innovations
1950s: Hydraulic controls enabled mass production of pen clips (10k/day)
1980s: CNC integration reduced setup time by 70%
21st Century Breakthroughs
2023: AI-powered thermal compensation maintains ±0.0002" accuracy over 24hr runs
2024: 7-axis Swiss lathes with integrated laser etching hit the market
Today, 82% of FDA-approved orthopedic screws are Swiss-machined (Journal of FDA Medical Device Manufacturing, 2024).
3. Swiss vs Traditional Lathes: 5 Structural Innovations
Component | Swiss Lathe | Conventional Lathe |
Headstock | Sliding design with guide bushing | Fixed position |
Tool Proximity | 0.1–0.5mm from workpiece | 5–10mm from chuck |
Vibration Control | Active damping (0.2µm amplitude) | Passive systems (5–10µm) |
Coolant System | Precision oil mist (0.1µm film) | Flood coolant |
Material Utilization | 98% via bar feeders | 80–85% typical |
Case Study: Machining Ø1.6mm PEEK spinal spacers:
Swiss Lathe: 99.8% dimensional consistency across 50k units
CNC Lathe: 94% consistency with 6% scrap rate
4. Micro-Machining Mastery: Tolerances Beyond Human Perception
Swiss lathes achieve precision that challenges measurement tools:
Tolerances:
Standard: ±0.0002" (5µm)
Advanced: ±0.0001" (2.5µm) for medical lasers
Surface Finish:
Mirror finishes: Ra 0.1µm via diamond-tipped tools
Thread perfection: M1.0 threads with 0.5µm pitch accuracy
Real-World Example: A neurotech company reduced brain probe connector failure rates by 90% using Swiss lathes for 0.03mm features.
5. Swiss vs CNC Lathes: Performance Metrics
Parameter | Swiss Lathe | CNC Lathe | Improvement |
Cycle Time (1k parts) | 6.5 hrs | 12 hrs | 46% faster |
Labor Cost/Unit | $0.75 | $1.50 | 50% savings |
Tool Life (stainless) | 8,000 parts | 3,500 parts | 129% longer |
Energy Consumption | 8.2 kW/hr | 15.6 kW/hr | 47% less |
Data: 2024 International Journal of Advanced Manufacturing
6. Advanced Tooling: Beyond Basic Turning
Multi-Axis Machining
5-axis Swiss lathes: Mill hexagonal flats while drilling Ø0.3mm cross-holes
B-axis Contouring: Complex geometries like vascular stent patterns
Hybrid Technologies
Laser Integration: Post-process annealing of nitinol stents
Ultrasonic Assistance: 40kHz vibrations enabling glass machining
Smart Tooling
RFID Chips: Track tool usage and predict failures
Self-Adjusting Inserts: Automatically compensate for wear
7. Industry Transformations Through Swiss Machining
Medical Miracles
Biodegradable Implants: Magnesium alloy screws dissolving in 6–12 months
Surgical Robotics: Ø0.8mm wristed instruments with 0.001" flex tolerance
Aerospace Innovations
Turbine Blades: 3D-contoured cooling channels in Inconel 718
Satellite Components: Aluminum 7075 parts with 0.0003" thermal stability
Electronics Revolution
Micro-Optics: Brass lens mounts with 0.5µm concentricity
Quantum Computing: Niobium superconducting resonators
8. Material Compatibility: From Exotics to Polymers
Material | Swiss Lathe Specialty |
Ti-6Al-4V ELI | Ra 0.2µm finishes (ASTM F136) |
PEEK | Non-galling threads for MRI systems |
ZrO2 Ceramics | 0.1mm slots without chipping |
Nitinol | Shape-setting via in-process heat treatment |
9. Cost Efficiency: Breaking the Precision=Expensive Myth
Automated Production:
72hr unmanned runs producing 15k medical screws
Quick-change tooling reduces setup to 22 minutes
Material Savings:
98% utilization vs 82% for CNC lathes
Scrap recycling nets $12k/month for a mid-sized shop
ROI Example: An automotive supplier cut fuel injector costs by $1.2M/year switching to Swiss lathes.
10. The Future: AI, Nanotech & Sustainability
AI Integration
Adaptive Machining: Real-time adjustment of 58 parameters
Digital Twins: Virtual models predicting tool wear within 0.5%
Nano-Precision
Femtosecond Lasers: 0.005mm surface texturing
Quantum Metrology: Measuring at atomic scales
Green Manufacturing
Dry Machining: Eliminating 97% coolant use
Energy Recovery: Regenerative drives saving 18kW/hr
11. Selecting Your Swiss Lathe: Technical Checklist
Accuracy Class:
Medical: ±0.0001" with ISO 13485 compliance
Industrial: ±0.0005" acceptable
Tool Capacity:
Minimum 8 live tools + sub-spindle
Software:
CAM with collision avoidance and thermal modeling
Falcon Swiss CNC machining offers multi-axis Swiss lathes with integrated AI optimization.
12. Conclusion: Precision Redefined
From crafting life-saving implants to enabling quantum leaps in technology, Swiss lathes represent manufacturing’s cutting edge. Their unique fusion of historical craftsmanship and digital innovation makes them indispensable for tomorrow’s challenges.
