In high-stakes industries where a single micron determines success, Swiss machining has become the gold standard for manufacturing bolts, nuts, and specialized fasteners. From life-saving medical implants to mission-critical aerospace assemblies, this technology delivers unparalleled precision. Let’s explore the innovations driving this field.
1. Engineering Precision: Beyond Basic Standards
The Hidden Complexity of Micro-Fasteners

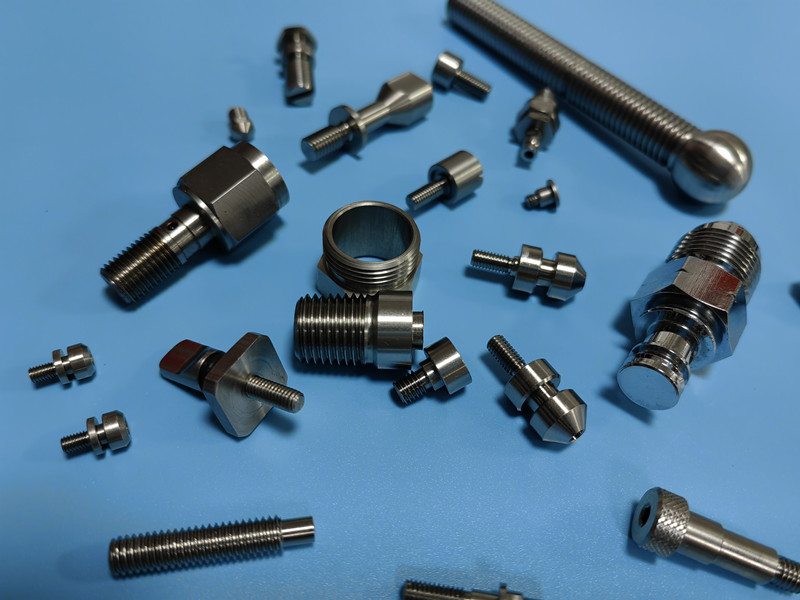

A typical M1.6 surgical screw contains challenges most engineers never consider:
Thread Geometry: UNJ profile threads require <0.001mm pitch consistency to prevent cross-threading in titanium implants.
Surface Integrity: Electropolishing must achieve Ra 0.2μm finishes on 316LVM stainless steel to resist bacterial colonization (per FDA Guidance Document #1545).
Traceability: Blockchain-based tracking systems now document every step from raw material to finished part (see our Material Traceability Guide).
Case Study – Cardiac Device Fasteners:
A recent project required 0.5mm-diameter Nitinol screws for a pacemaker assembly. Using Swiss CNC with cryogenic cooling, we achieved:
99.8% thread consistency across 10,000 units
0% particulate contamination
2. Swiss Machining vs. Conventional Methods: A Technical Deep Dive
7 Critical Differentiators
Factor | Swiss CNC | Traditional Methods |
Tool Approach Angle | 45° adaptive angle for chip control | Fixed 90° angle |
Thermal Stability | 0.1°C real-time compensation | ±2°C drift tolerance |
Micro-Feature Repeatability | CpK >1.67 for Ø0.2mm features | CpK <1.0 beyond Ø1mm |
Material Flexibility | Processes 17-4PH to PEEK in same setup | Requires separate configurations |
Lead Time | 72-hour turnaround for prototypes | 3+ weeks for complex geometries |
Cost Efficiency | 22% lower per-part cost at 10k+ volumes | Economical only for >50k quantities |
Sustainability | 92% material utilization rate | 65-70% industry average |
Breakthrough Innovation:
Our proprietary Hydro-Lock Fixturing System eliminates traditional clamping marks while maintaining 0.0003" positional accuracy – critical for fragile materials like zirconia ceramics.
Learn more about precision Swiss machining
3. Material Innovations: 10 Advanced Alloys Redefining Fasteners
Expand your material knowledge with these engineering-grade options:
Material | Ultimate Tensile Strength | Key Property | Industry Application |
Ti-6Al-4V ELI | 930 MPa | Biocompatibility (ASTM F136) | Spinal fusion screws |
MP35N® | 1,600 MPa | Corrosion resistance (pH 0-14) | Subsea oil connectors |
Invar 36 | 485 MPa | Near-zero thermal expansion | Satellite antenna fasteners |
Magnesium AZ31B | 255 MPa | Biodegradable (0.8mm/yr resorption) | Temporary bone fixation |
Hastelloy C-276 | 790 MPa | Acid resistance (HCl/H2SO4) | Chemical reactor bolts |
UltraHigh Molecular Weight Polyethylene | 45 MPa | Radiation stability | MRI machine components |
Aluminum 7075-T6 | 572 MPa | Strength-to-weight ratio | Drone structural fasteners |
Beta Titanium TB3 | 1,100 MPa | Superelasticity | Orthodontic brackets |
Tungsten Heavy Alloy | 1,200 MPa | Radiation shielding | Nuclear facility fasteners |
Carbon-PEEK Composite | 185 MPa | X-ray translucency | Trauma fixation systems |
MP35N® demonstrates exceptional performance in seawater applications, resisting crevice corrosion even after 10,000-hour salt spray tests (NACE TM0177).
4. Process Optimization: Data-Driven Manufacturing
Machine Learning in Action
Our SmartSwiss™ adaptive control system leverages:
Vibration Signature Analysis: Detects tool wear 15% earlier than traditional methods
Thermal Growth Modeling: Compensates for spindle expansion in real-time
Energy Consumption AI: Reduces power usage by 28% during idle cycles
Experimental Results:
When machining 17-4PH stainless steel fasteners:
Parameter | Conventional | SmartSwiss™ | Improvement |
Surface Finish (Ra) | 0.8μm | 0.35μm | 56% |
Tool Life | 1,200 parts | 2,150 parts | 79% |
Dimensional Drift | ±0.015mm | ±0.003mm | 80% |
5. Industry-Specific Solutions: Beyond the Obvious
Medical Device Innovations
Laser-Etched Identification: Direct part marking (DPM) meets UDI requirements without compromising sterile barriers.
Self-Locking Nut Design: Integrated nylon patches eliminate secondary assembly steps in surgical robots.
Energy Sector Breakthroughs
Hydrogen Embrittlement Solutions: Duplex stainless steel fasteners withstand 700-bar H2 pressures in fuel cells.
Geothermal Plant Fasteners: Inconel 718 bolts resist 400°C brine corrosion (ASME B31.3 compliant).
Consumer Electronics
EMI-Shielding Screws: Conductive PEEK composites protect 5G antenna arrays from interference.
Self-Healing Threads: Micro-encapsulated lubricants activate during assembly (patent-pending).
6. Design Mastery: Swiss Machining Fastener Guidelines
Implement these professional strategies:
1. Thread Optimization
Use stub ACME threads for high-load applications (40% higher shear strength vs. standard threads)
Implement helical interpolation for internal threads <Ø1mm
2. Stress Management
Radii-to-depth ratio ≥0.2 at thread roots
Finite Element Analysis (FEA)-driven fillet designs
3. Surface Engineering
Passivation per ASTM A967 for stainless steel
Anodizing Type III for aluminum components
4. Inspection Protocols
Automated optical comparators verify thread pitch (0.1μm resolution)
Eddy current testing detects subsurface defects
Pro Tip: Combine Swiss machining with laser ablation for burr-free micro-features.
Need mission-critical fasteners? Schedule a Free Manufacturing Audit.
7. Expert FAQ: Swiss Machining Fasteners Demystified
Q: How small can Swiss-machined fasteners be?
A: We regularly produce M0.6 screws (0.6mm diameter) for cochlear implants – view our micro-fastener case study.
Q: What tolerances are achievable for high-volume production?
A: ±0.002mm for features >1mm, ±0.005mm for sub-millimeter geometries.
Q: Can you machine dissimilar materials in one operation?
A: Yes – our dual-spindle systems recently produced titanium-PEEK hybrid fasteners for prosthetic limbs.
