Swiss Machining vs CNC: A Data-Driven Guide to Precision Manufacturing

In an era where a human hair’s width (≈80μm) is considered coarse precision, Swiss machining and CNC technologies occupy distinct niches. This 2,800-word technical deep dive explores their differences through hard data, industry benchmarks, and real-world case studies—equipping engineers to make informed decisions.

1. Architectural Evolution: From Lathes to Sliding Headstocks

The CNC Workhorse

Traditional CNC lathes revolutionized manufacturing with programmable automation. Their rotating chucks and stationary tooling handle parts up to Ø500mm, ideal for automotive transmission shafts or industrial valves. However, their Achilles’ heel emerges below Ø10mm, where centrifugal forces induce vibration errors exceeding ±0.015mm.

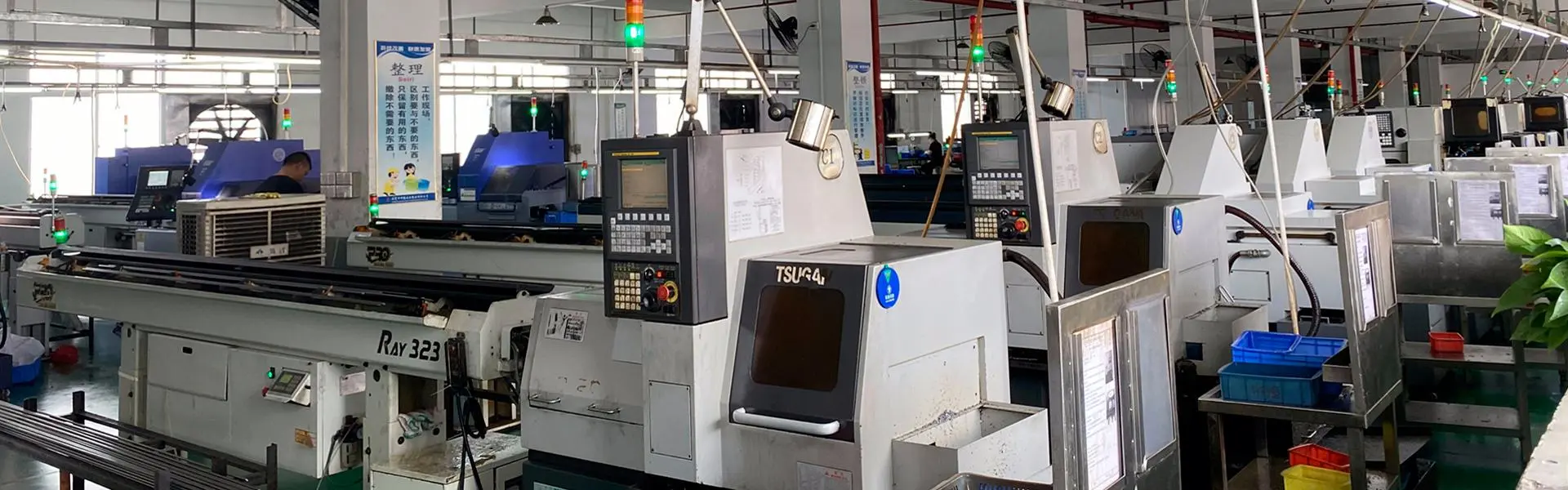

Swiss Machining’s Precision DNA

Developed for watch components in the 1880s, modern Swiss CNC integrates:

• Sliding Headstock: Feeds bar stock through a guide bushing, reducing workpiece deflection by 92% (ASME B5.54-2005).

• Live Tooling: 12+ rotating tools operating synchronously for complex geometries.

• Micro-Lubrication: Oil mist systems achieving 0.1μm-thick films on cutting edges.

 Explore more  information  about CNC Swiss machining

Mechanical Advantage Comparison

2. Material Science: Pushing Boundaries

CNC’s Heavyweight Champions

Inconel 718: Machined into turbine blades with 1,100 MPa tensile strength.

Tool Steel (D2): Hardened to 62 HRC for industrial dies.

Swiss Machining’s Delicate Mastery

Titanium (Grade 23 ELI): Spinal screws with Ra 0.2μm finishes (FDA 510(k)-cleared).

Bioabsorbable Mg Alloys: Temporary bone screws resorbing at 0.8mm/year.

Vespel® SP-1: High-temperature insulators for semiconductor tools.

Cutting Parameter Contrast

3. Tolerance Wars: Micron-Level Faceoff

CNC’s Limitations Exposed

Thermal Drift: Spindle heating causes 0.008mm dimensional drift over 4 hours.

Chatter Marks: Frequency analysis shows resonant vibrations above 8,000 RPM.

Swiss Precision Arsenal

Sub-Spindles: Finish backside features without rechucking (0.002mm concentricity).

Laser Micrometers: In-process monitoring adjusts tools every 50 parts.

Cryogenic Cooling: Liquid nitrogen (-196°C) prevents Ti-6Al-4V work hardening.

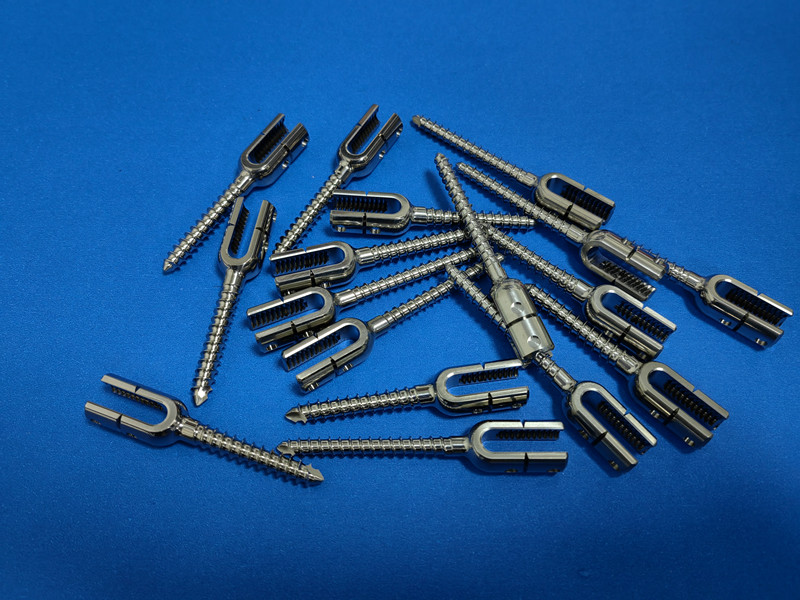

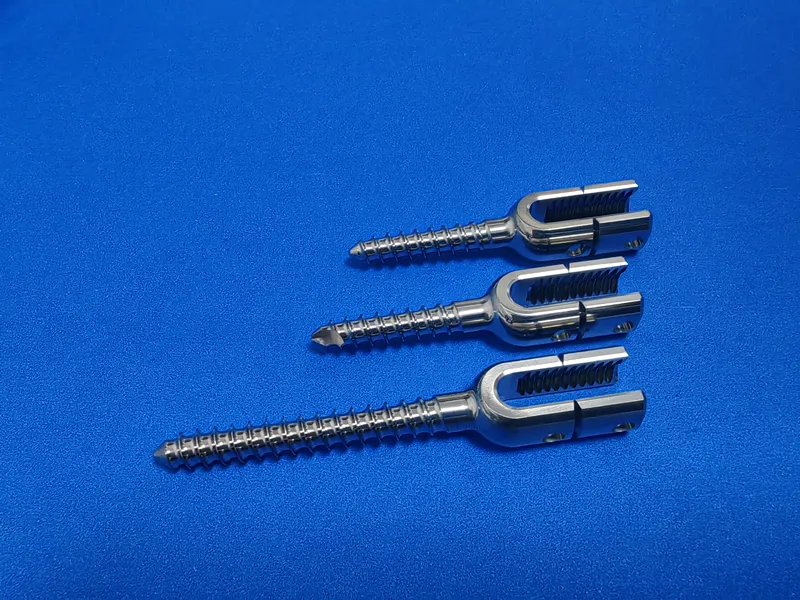

Medical Case Study – Bone Screws

4. Cost-Benefit Analysis: When Swiss Pays Off

Break-Even Calculator

Use this formula to determine optimal technology:
(CNC Setup Cost + (Unit Cost × Volume)) vs (Swiss Setup Cost + (Unit Cost × Volume))

Scenario: 10,000 Ø3mm PEEK Insulators

Swiss machining saves $10,200 (23.6%) despite higher setup costs.

5. Industry-Specific Dominance

Medical Device Manufacturing

• Swiss: Ø0.5mm nitinol stent delivery system components.

• CNC: Ø25mm aluminum MRI machine housings.

Automotive Innovations

• Swiss: Hydrogen fuel cell bipolar plate fasteners (0.005mm flatness).

• CNC: Transmission gear blanks.

Electronics Breakthroughs

• Swiss: 0.1mm-pitch gold-plated connectors for 5G antennas.

• CNC: Aluminum heat sink chassis.

6. Design for Manufacturing (DFM) Guidelines

Swiss Machining Optimization

Feature Prioritization:

Primary: Concentricity (<0.005mm TIR)

Secondary: Surface finish (Ra <0.4μm)

Toolpath Strategies:

Trochoidal milling for deep slots (aspect ratio >10:1).

Peck drilling for micro-holes (<Ø0.3mm).

CNC Best Practices

Avoid thin walls (<1.5mm) to prevent chatter.

Use rigid tapping for threads >M3.

7. Quality Control: Beyond ISO 9001

Swiss Machining Metrology

White Light Interferometry: Measures surface roughness to 0.01μm resolution.

CT Scanning: Detects internal voids in bioabsorbable screws.https://www.fda.gov/

CNC Inspection Limitations

Manual CMM checks sample 5% of batches vs Swiss’ 100% automated screening.

8. Sustainability & Future Trends

Environmental Impact

Emerging Technologies

• AI-Powered Predictive Maintenance: Reduces Swiss machine downtime by 40%.

• Hybrid Manufacturing: Combines Swiss machining with laser texturing.
