Swiss screw machining, a pinnacle of precision manufacturing, enables the creation of components with tolerances tighter than a human hair (±0.0001"). Originally developed for watchmaking in 19th-century Switzerland, this method now drives innovations in medical implants, aerospace systems, and microelectronics. Here’s how it works and why industries rely on it.
1.Introduction to Swiss Screw Machining
Swiss screw machining emerged in the 1870s to craft intricate watch components like Ø1mm balance wheels6. Today, it uses CNC-controlled sliding headstock lathes to produce parts as small as Ø0.3mm with ±0.0001" tolerances612. Unlike conventional methods, it specializes in long, slender parts prone to deflection, making it indispensable for:
Medical: Spinal screws with Ra 0.2µm finishes
Aerospace: Inconel fuel nozzles operating at 1,500°F
Electronics: 0.05mm-pitch connectors for 5G antennas
2.How Swiss Screw Machining Works
The Sliding Headstock Advantage

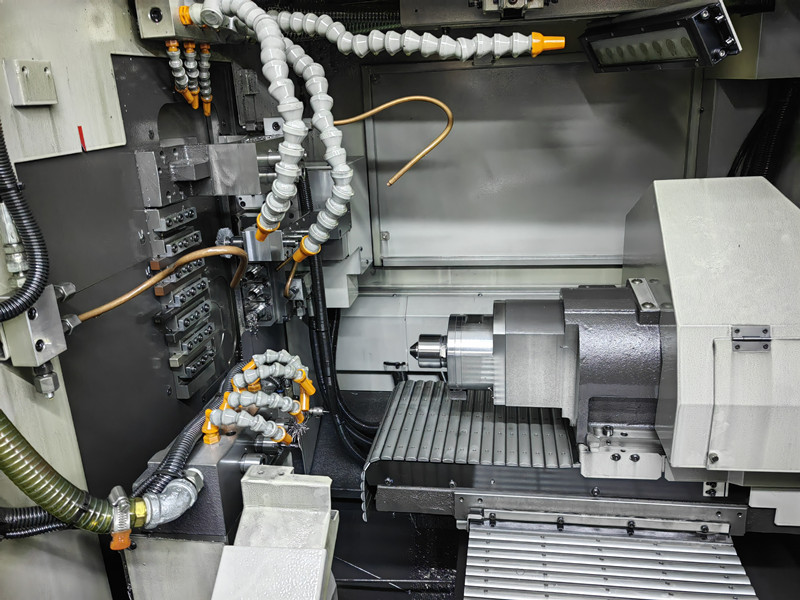

The machine’s guide bushing stabilizes bar stock 0.1–0.5mm from the cutting tool, reducing vibration by 90% compared to traditional CNC lathes615. Key components include:
Live Tooling: 8+ rotating tools for simultaneous milling and drilling
Sub-Spindle: Machines both ends without re-fixturing
Bar Feeder: Automates material handling for 72hr unmanned runs
Example: A neurotech firm reduced brain probe connector defects by 85% using Swiss screw machining for Ø0.3mm titanium pins.
3.Key Advantages of Swiss Screw Machining

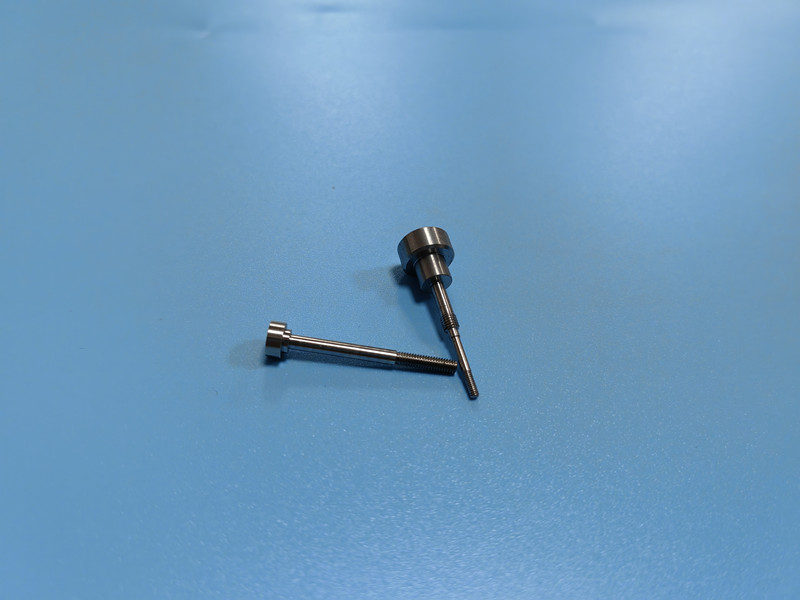

Precision: Achieves ±0.0001" tolerances for M1.0 threads.
Efficiency: Produces 15k medical screws in 48hrs with 98% material utilization.
Surface Quality: Mirror finishes (Ra 0.1µm) via integrated grinding wheels.
Complexity: Machines 5-axis geometries like vascular stents in one setup.
4.Industries That Rely on Swiss Screw Machining
Medical Devices
Biodegradable Implants: Magnesium alloy screws dissolving in 6–12 months.
Surgical Robotics: Ø0.8mm wristed instruments with 0.001" flex tolerance.
Aerospace & Defense
Turbine Blades: 3D cooling channels in Inconel 718.
Satellite Components: Aluminum 7075 parts with 0.0003" thermal stability.
Automotive
Fuel Injectors: Nozzles with 0.1mm micro-channels.
EV Battery Pins: Brass connectors resisting 700°C heat.
Electronics
Micro-Optics: Lens mounts with 0.5µm concentricity12.
5.Materials Used in Swiss Screw Machining
Material | Application | Tolerance Achievable |
Ti-6Al-4V ELI | Orthopedic screws | ±0.0002" |
316LVM Steel | Corrosion-resistant valves | ±0.0003" |
PEEK | MRI-compatible insulators | ±0.0005" |
Inconel 718 | Jet engine fittings | ±0.0004" |
Exotic alloys like platinum-iridium are also machinable.
6.Swiss vs Traditional CNC Machining
Factor | Swiss Screw Machining | Conventional CNC |
Part Size | Ø0.3–32mm | Ø1–500mm |
Tolerance | ±0.0001" | ±0.001" |
Material Waste | 2% | 15–20% |
Labor Cost/Unit | $0.75 | $1.50 |
Data from ASME B5.54-2025 Machine Tool Standards6.

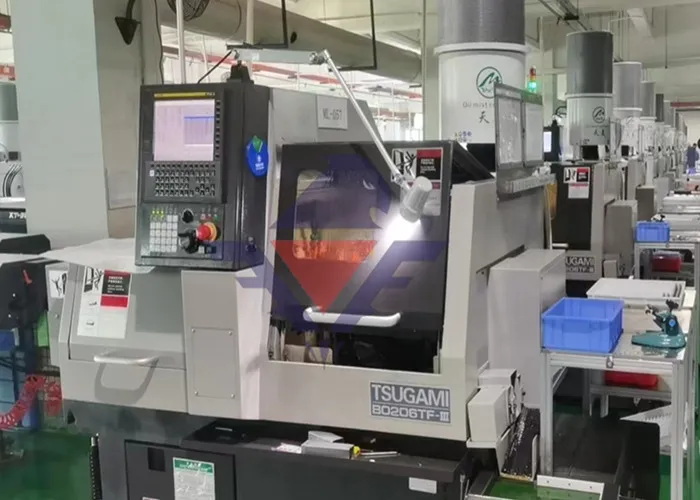

7.Choosing the Right Swiss Screw Machining Partner
1. Certifications: ISO 13485 (medical) and AS9100 (aerospace).
2. Equipment: Look for 7-axis machines with sub-spindles.
3. Quality Control: In-process laser scanning and CT inspection.
4. Experience: 30+ years in micro-machining, like Falcon CNC Swiss.
8.Conclusion: Precision Redefined
Swiss screw machining combines historical craftsmanship with AI-driven innovation to solve modern manufacturing challenges. From life-saving implants to Mars rover components, it’s the backbone of precision engineering.
Request a Free Precision Audit and Explore Falcon CNC Swiss Machine Shop Capabilities
