What is Swiss-Type Machining? The Definitive Guide to Precision Engineering

Table of Content [Hide]

Swiss-type machining, a cornerstone of modern manufacturing, enables the production of components with tolerances tighter than ±0.0001" (2.5µm). Originating in 19th-century Swiss watchmaking, this method now drives innovation across critical industries like medical devices, automotive systems, and electronics. Here’s an in-depth exploration of its mechanics, applications, and future trends.

1.Introduction to Swiss-Type Machining

Developed in the 1870s for crafting watch components like Ø1mm balance wheels, Swiss machining evolved into a CNC-driven process for ultra-small, high-precision parts. Today, it’s indispensable for industries requiring microscopic accuracy, such as:

Medical: Spinal screws with Ra 0.2µm finishes for osseointegration.
Automotive: Fuel injector nozzles with 0.1mm micro-channe.
Electronics: 0.05mm-pitch connectors for 5G antennas.

2.How Swiss-Type Machining Works

Key Mechanisms

Sliding Headstock: Feeds bar stock through a tungsten carbide guide bushing, stabilizing material within 0.1mm of cutting tools to reduce vibration by 90%.
Live Tooling: 8+ rotating tools perform simultaneous milling, drilling, and threading.
Sub-Spindle: Machines both ends of a part without re-fixturing, ensuring ±0.0002" concentricity.

Traditional CNC vs. Swiss Lathes

Feature	Swiss Lathe	Conventional CNC
Tolerance	±0.0001"	±0.001"
Material Waste	2%	15–20%
Cycle Time	6.5 hrs (1k parts)	12 hrs
Data sourced from ASME B5.54 standards11.

3.Key Advantages of Swiss-Type Machining

Precision: Achieves Ra 0.1µm finishes for titanium implants.
Efficiency: 98% material utilization via automated bar feeders.

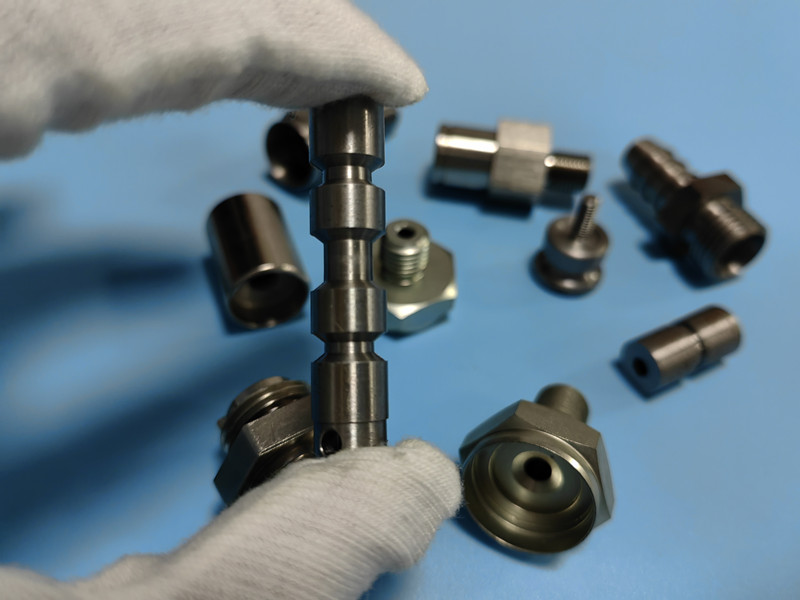

Speed: Produces 15k medical screws in 48hrs with unmanned operation.

Case Study: A medical OEM reduced M1.2 titanium screw scrap rates from 12% to 0.5% using Swiss-type machining.

4.Applications Across Industries

Medical Devices

Biodegradable Implants: Magnesium alloy clips dissolving in 6–12 months.

Surgical Robotics: Ø0.8mm instruments with 0.001" flex tolerance.

Automotive

EV Battery Pins: Brass connectors resistant to 700°C heat.

Fuel Injectors: Nozzles with 0.1mm micro-channels.

Electronics

Micro-Optics: Lens mounts with 0.5µm concentricity.

Quantum Computing: Niobium superconducting resonators.

5.Materials Used in Swiss-Type Machining

Material	Application	Tolerance
Ti-6Al-4V ELI	Orthopedic screws	±0.0002"
316LVM Steel	Corrosion-resistant valves	±0.0003"
PEEK	MRI-compatible insulators	±0.0005"
Nitinol	Shape-memory surgical clamps	±0.0004"

Exotic alloys like platinum-iridium are also machinable.

6.Swiss Machining vs. Traditional CNC: When to Choose

Scenario	Swiss Machining	Traditional CNC
Part Size	Ø0.3–32mm	Ø1–500mm
Volume	1k–100k units	Prototypes & small batches
Complexity	5-axis geometries	Simple geometries

Cost Example: Swiss machining reduces per-unit costs by 30% for batches over 10k.

7.How to Choose a Swiss-Type Machining Provider

Certifications: ISO 13485 (medical) and IATF 16949 (automotive).

Equipment: 7-axis Swiss lathes with AI-driven thermal compensation.

Quality Control: In-process laser scanning and CT inspection.

Why Falcon CNC Swiss?

Certifications: ISO 9001, 13485, and 3694913.

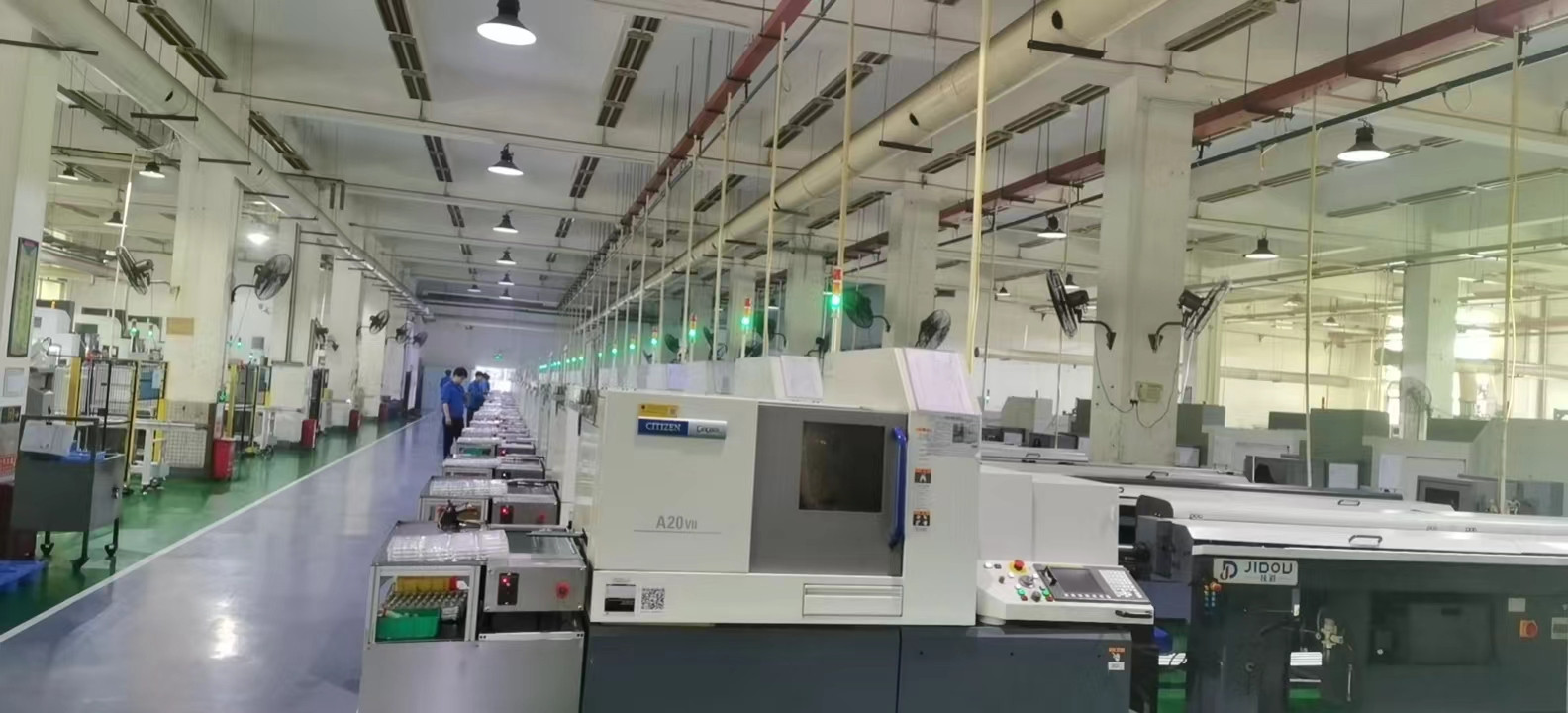

Technology: 300+ Swiss machines handling Ø0.3–32mm parts.

Case Study: Delivered 99.8% defect-free titanium spinal screws for a medical client.

8.Future Trends in Swiss-Type Machining

AI Integration: Predictive maintenance reduces downtime by 40%.

Nano-Precision: Femtosecond lasers achieve 0.005mm surface texturing.

Sustainability: Dry machining eliminates 97% of coolant use.

9.Conclusion

Swiss-type machining merges historical craftsmanship with cutting-edge technology to solve modern manufacturing challenges. Whether you’re crafting life-saving implants or quantum computing components, precision is non-negotiable.
