Swiss Style Machining: Mastering Precision in Modern Manufacturing

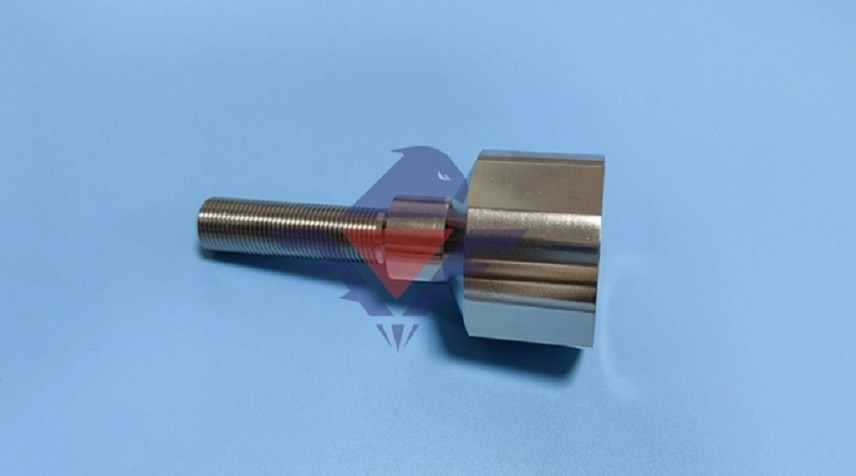

Swiss Style Machining, also known as Swiss-type turning or Swiss screw machining, is a manufacturing process renowned for its ability to produce small, intricate, and ultra-precise components. Originating in Switzerland’s watchmaking industry over a century ago, this technology has evolved into a cornerstone of industries where micron-level accuracy is non-negotiable. From medical implants to aerospace sensors, Swiss machining bridges traditional craftsmanship with cutting-edge innovation. This 1600-word guide explores its mechanics, applications, technological advancements, and how to select the right partner for your precision needs.
In the late 19th century, Swiss watchmakers faced a challenge: producing miniature screws and gears for pocket watches with tolerances tighter than a human hair (0.05 mm). Traditional lathes struggled with these components due to vibration and material deflection.
The Breakthrough:
In 1870, watchmaker Jakob Schweizer revolutionized the industry by inventing the sliding headstock lathe. By stabilizing the workpiece with a guide bushing positioned just 1–2 mm from the cutting tool, deflection was reduced by 90%. This allowed watchmakers to achieve ±0.01 mm tolerances—unprecedented at the time.
Modern Evolution:
The 1960s introduced computer numerical control (CNC), transforming Swiss machines into multi-axis powerhouses. Today’s Swiss CNC lathes, like the Citizen Cincom L20, integrate live tooling, Y-axis capabilities, and automated bar feeders, achieving tolerances as tight as ±0.0002 inches (0.005 mm).
Sliding Headstock: Moves the workpiece axially while the guide bushing remains fixed.
Guide Bushing: Supports the material within millimeters of the cutting tool, eliminating deflection.
Multi-Axis Tooling: Up to 13 axes enable simultaneous turning, milling, and drilling.
Sub-Spindle: Transfers parts for backside machining, completing components in a single setup.
Operational Workflow:
Material Feeding: A bar feeder automatically loads raw material (e.g., titanium rod) into the guide bushing.
Primary Machining: The sliding headstock advances the material while tools perform front-end operations.
Secondary Operations: The sub-spindle grips the part for backside drilling or threading.
Part Ejection: Finished components are cut off and collected, with cycle times as low as 15 seconds per part.
Swiss machining handles materials that challenge conventional CNC systems:
| Material | Applications | Key Challenges | Solutions |
|---|---|---|---|
| Titanium (Grade 5) | Medical implants, aerospace fasteners | Heat buildup, tool wear | Diamond-coated tools + 80 bar coolant |
| Inconel 718 | Jet engine turbine blades | Work hardening | Peck drilling + optimized feed rates |
| PEEK | Semiconductor wafer handlers | Melting during machining | High-speed cutting (300 m/min) + MQL |
| Copper C10100 | 5G antenna connectors | Oxidation, burring | Electrolytic polishing post-processing |
Case Study: Medical Bone Screws
A global orthopedic manufacturer required 2.4 mm titanium bone screws with M1.2 internal threads. Using a Citizen L20 equipped with 0.1 mm micro-drills and 60° thread whirling tools, they achieved:
Tolerances: ±0.003 mm
Surface Finish: Ra 0.1 μm (mirror-like)
Production Rate: 2,200 pieces/hour
Applications: Bone screws, dental implants, surgical robots.
Standards: ISO 13485 compliance, biocompatible surface finishes.
Example: A Swiss-machined titanium spinal fusion cage reduced post-op complications by 30% due to its Ra 0.2 μm surface.
Applications: Fuel nozzles, hydraulic manifolds, satellite gyroscopes.
Materials: Inconel, Hastelloy, titanium.
Case Study: A jet engine manufacturer reduced fuel nozzle scrap rates from 12% to 2% using Swiss machining’s multi-axis capabilities.
Applications: Micro-connectors, MEMS sensors, 5G antenna components.
Tolerances: ±0.001 mm for gold-plated contacts.
Innovation: Swiss machines produce 0.3 mm diameter pins for smartphone circuit boards at 5,000 units/hour.
Applications: Fuel injector nozzles, transmission shafts, EV battery contacts.
Efficiency: A German automaker cut production costs by 25% using Swiss machines for high-volume fuel injector pins.
| Parameter | Swiss Machining | Traditional CNC |
|---|---|---|
| Tolerances | ±0.0002–0.0005 inches | ±0.001–0.005 inches |
| Part Diameter | 0.5–32 mm | 5–300 mm |
| Cycle Time | 15–30 seconds/part | 2–5 minutes/part |
| Material Waste | ≤10% | 15–30% |
| Setup Complexity | Single setup for multi-operations | Multiple setups required |
Data Source: SME Technical Paper Series (2023)
Solution: Use diamond-coated inserts with polished rake faces.
Example: A medical device manufacturer eliminated surface defects on 0.5 mm thick titanium housings by switching to PCD tools.
Solution: High-pressure coolant (120 bar) with through-tool delivery.
Case Study: An aerospace supplier reduced chip-related downtime by 50% using customized coolant nozzles.
Solution: AI-driven predictive maintenance monitors tool wear in real-time.
Result: A Swiss machining facility increased tool life by 35% using vibration sensors and machine learning algorithms.
1.Hybrid Additive-Subtractive Systems:
Combine 3D printing with Swiss machining to create internal cooling channels in turbine blades.
Example: GE Aviation’s “cold spray” technology deposits metal layers machined to final tolerances.
2.Digital Twins:
Virtual simulations optimize tool paths, reducing prototyping costs by 40%.
Case: A Swiss watchmaker used digital twins to perfect gear tooth profiles before physical machining.
3.Sustainable Practices:
MQL (Minimum Quantity Lubrication) cuts coolant usage by 90%.
Recyclable ceramic tooling reduces landfill waste.
1.Certifications:
ISO 9001: Quality management.
AS9100: Aerospace standards.
ISO 13485: Medical device compliance.
2.Technical Capabilities:
Verify access to multi-axis machines (e.g., Citizen L20, Tornos DECO).
Ask about secondary processes: EDM, laser marking, passivation.
3.Material Expertise:
Request case studies for your specific material (e.g., Gr. 5 titanium, PEEK).
4.Scalability:
Ensure capacity for both prototypes (1–50 units) and mass production (10,000+ units).
5.Quality Assurance:
Look for CMM (Coordinate Measuring Machine) reports and SPC (Statistical Process Control) data.
Swiss Style Machining remains unmatched in producing components where failure is not an option. From life-saving medical devices to cutting-edge aerospace systems, this technology enables innovations that shape our world.
Why Choose Falcon Swiss Machining?

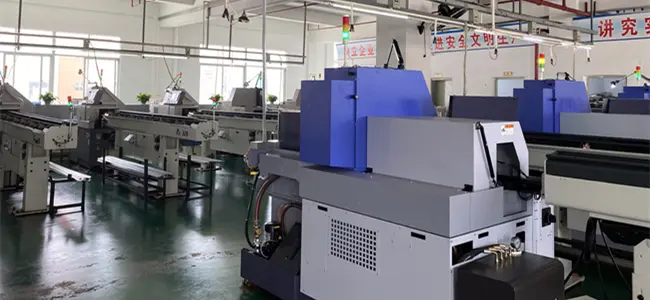

300+ Swiss CNC Machines: Including Citizen, Tsugami, and Tornos systems.
