CNC Swiss screw machines represent the pinnacle of precision manufacturing, offering unparalleled accuracy and efficiency in the production of intricate, slender, and delicate components. Designed with Swiss engineering principles, these specialized machines excel at transforming metal stock into parts that meet the tightest of tolerances, with micromachining capabilities down to 0.008 inches and tolerances as tight as 0.0002 inches. By precisely controlling a multitude of variables, from the machine's intricate movements to the thermal stability of the entire system, CNC Swiss screw machines have become the go-to solution for manufacturers seeking to push the boundaries of what is possible in precision engineering.
Swiss machining is a precision manufacturing process that uses specialized tools to transform metal stock into intricate, slender, or delicate components with tight tolerances. This method primarily involves Swiss-designed CNC lathes, which rotate parts radially while cutting the workpiece. Renowned for its cost-effectiveness, Swiss machining offers superior precision compared to similar techniques, making it ideal for producing high-volume, precision-turned parts with exceptional accuracy and efficiency.
When comparing standard CNC machines to CNC Swiss machines, several key differences stand out:
Cost: CNC Swiss machines are typically more expensive than standard CNC machines. This higher cost is due to their intricate movements and the complexity involved in their manufacturing.
Axes of Movement: Standard CNC machines usually operate on up to three axes (X, Y, and Z). In contrast, CNC Swiss machines often feature up to five axes, offering greater versatility.
Precision: The additional axes in CNC Swiss machines allow for much tighter tolerances compared to standard models, ensuring exceptional accuracy.
Micromachining Capabilities: CNC Swiss machines can produce extremely small parts, down to 0.008 inches. For such precise micromachining, tolerances can be as tight as 0.0002 inches.
What are the factors that affect the accuracy of precision parts? As we all know, the reason why precision parts processing is called precision machining is precisely because of its high processing procedures and process requirements, and high product accuracy requirements. The accuracy of precision parts processing includes position accuracy, size Accuracy, shape accuracy, etc. We have summarized the following factors that affect the precision of precision parts processing:
(1) In the processing of precision parts, the inaccuracy of the machine tool guide rails will also lead to errors in the shape of the workpiece.
(2) The rotational jump energy of the machine tool spindle causes certain errors in the machining accuracy of the parts.
(3) Transmission components will also cause errors during workpiece processing, which is also the main factor causing surface errors in the workpiece.
(4) Different types of tools and fixtures have different effects on the accuracy of the workpiece.
(5) During the machining and cutting process, due to changes in the position of the stress point, the system will deform, resulting in differences and varying degrees of errors in the accuracy of the workpiece.

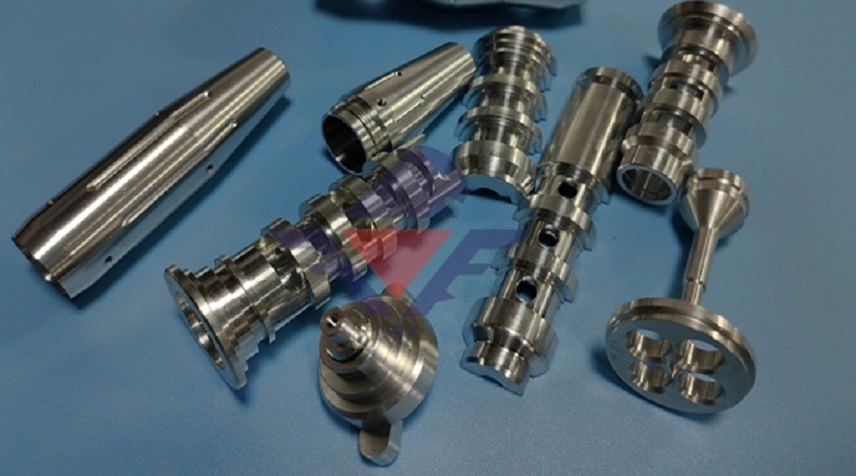

Precision parts processing
(6) Differences in cutting force will also affect the accuracy of the workpiece.
(7) Errors caused by thermal deformation of the process system. During the mechanical processing process, the process system will produce certain thermal deformation under the action of various heat sources.
(7) Deformation caused by heating of the process system often affects the accuracy of the workpiece.
(8) Deformation caused by heating of the machine tool will lead to deformation of the workpiece.
(9) Thermal deformation of the tool will have a great impact on the workpiece.
(10) The workpiece itself is deformed by heat, mainly during the cutting process.
