​Precision Swiss Machining for Brass Components: Capabilities, Applications & Expert Tips

Create by Falcon Engineering Team 2025/03/29

Brass remains a cornerstone material for precision machining due to its unique blend of machinability, corrosion resistance, and aesthetic appeal. When combined with Swiss machining—a process renowned for sub-millimeter accuracy—the results are components that power industries from medical devices to renewable energy systems. This guide explores why Swiss machining is the gold standard for brass parts and how Falcon CNC Swiss delivers unmatched precision for critical applications.




What Makes Swiss Machining Ideal for Brass?

Swiss machining’s sliding headstock and guide bushing system uniquely stabilize brass rods during high-speed operations, achieving tolerances as tight as ±0.0005" (0.0127mm) even for slender components110. Unlike conventional CNC lathes, this method prevents tool chatter and deflection—common issues when machining softer metals like brass.



Key advantages for brass:

  • Single-pass machining: Complex geometries (e.g., internal threads, undercuts) completed in one setup.

  • Minimal burring: High spindle speeds (up to 10,000 RPM) paired with sharp carbide tools ensure clean edges.

  • Material efficiency: Automated bar feeders reduce waste to <3% for cost-sensitive projects




5 Brass Alloys Optimized for Swiss Machining

Selecting the right brass grade ensures optimal performance:


Material

Properties

Typical Uses

C36000 (Free-Cutting Brass)

Excellent machinability (100% rating), leaded for chip control

Electrical connectors, valve stems

C46400 (Naval Brass)

Superior corrosion resistance in saltwater

Marine hardware, pump components

C48500 (Leaded Muntz Metal)

High tensile strength (60 ksi)

Gears, bushings

C23000 (Red Brass)

Antimicrobial properties, NSF/ANSI 61 compliant

Plumbing fixtures, medical tubing

C54400 (Phosphor Bronze)

Wear resistance, low friction

Bearings, musical instrument valves





7 Industries Transformed by Swiss-Machined Brass Parts

Medical Devices

  • Components: Endoscope valve bodies (C23000), surgical instrument housings

  • Critical Need: ISO 13485-compliant surfaces with Ra < 32 µin finish to prevent bacterial growth.



Electronics & Telecommunications

  • Components: RF connectors (C36000), 5G waveguide fittings

  • Precision Requirement: ±0.001" concentricity for signal integrity.



Automotive Fuel Systems

  • Components: Brass fuel injector nozzles, EV charging port pins

  • Standards: SAE J1645 compliance for ethanol-blended fuels.



Marine Engineering

  • Components: Propeller shaft bushings (C46400), seawater valve cores.

  • Challenge: Machining stress-relieved brass to prevent dezincification.



HVAC & Plumbing

  • Components: Anti-microbial water meter gears (C23000), compression fittings

  • Regulatory: NSF/ANSI 372 lead-free certification for potable water systems.



Renewable Energy

  • Components: Solar thermal system valves, wind turbine contact pins

  • Durability: MIL-STD-889 corrosion testing for coastal installations.



Musical Instruments

  • Components: Trumpet valve casings (C54400), saxophone keywork.

  • Aesthetic Demand: Non-tarnishing brushed finishes achieved through post-machining passivation.

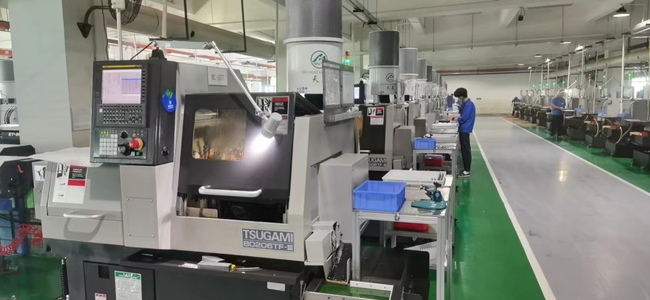

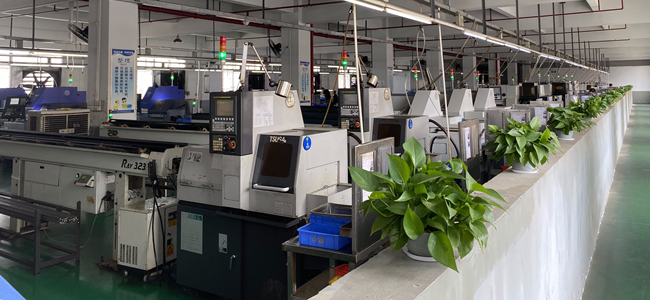

High-Volume Brass Swiss Machining: How We Deliver 1,000,000+ Units/Month

Falcon CNC Swiss combines advanced automation with process engineering to scale production without sacrificing precision:

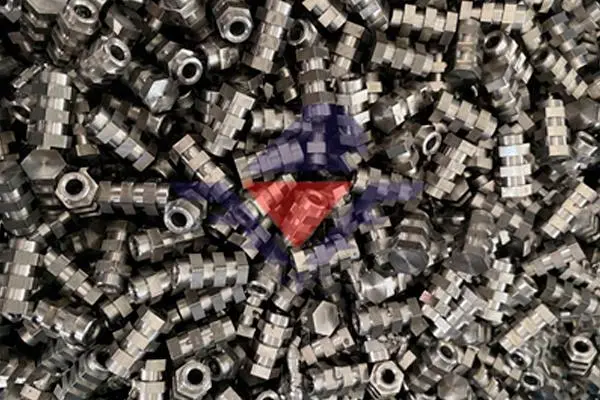

  • Multi-Axis Live Tooling: Machines hexagonal flats and cross-holes simultaneously, reducing cycle time by 40%.

  • In-Line Metrology: Laser micrometers verify critical dimensions (e.g., Ø0.5mm ±0.0002") in real time.

  • Dedicated Material Handling: Bar feeders with anti-scratch polymer liners maintain surface quality for C36000 runs.


Case Study: Reduced a medical OEM’s brass connector lead time from 12 weeks to 6 weeks through optimized tool paths and 24/7 lights-out production.




7 Expert Tips for Flawless Swiss Machining of Brass

Tool Selection: Use polished carbide inserts with positive rake angles (≥15°) to minimize built-up edge.

Coolant Strategy: Opt for semi-synthetic fluids at 8-12% concentration to prevent staining while dissipating heat.

Chip Control: Program peck drilling cycles for deep holes (>5xD) to avoid bird-nesting.

Speed Optimization: Run C36000 at 400-600 SFM; reduce to 250 SFM for lead-free alloys like C23000.

Deburring: Integrate in-machine brushing for internal features using 0.3mm nylon abrasive tools.

Post-Processing: Specify electropolishing for Ra < 8 µin finishes on sliding surfaces.

Quality Assurance: Implement statistical process control (SPC) for lot-to-lot consistency in high-volume runs.




5 Factors When Choosing a Brass Swiss Machining Partner

Material Certifications: Verify Mill Test Reports (MTRs) for RoHS/REACH compliance—critical for EU exports.

Secondary Services: Look for partners offering in-house plating (e.g., nickel undercoating for solderability).

Prototyping Speed: Demand ≤72-hour turnaround for DFM feedback on your CAD files.

Scalability: Ensure tiered pricing models for batches from 100 to 100,000 units.

Industry Expertise: Prioritize shops with ISO16949 or ISO 13485 certifications for regulated sectors[Find more information about our QA].




Why Falcon CNC Swiss for Your Brass Components?

Zero Defect Guarantee: 100% first-article inspection using Mitutoyo CMMs (accuracy: 1.8µm + L/250µm).

Cost Transparency: Instant quoting platform with breakdowns for material, tooling, and finishing.


Get Your Brass Machining Quote in 2 Hours

Sustainability: 98% brass scrap recycling through closed-loop systems.




FAQ

Q: What’s the smallest brass part your Swiss machines can produce?
A: We routinely machine Ø0.4mm pins for microfluidic devices, with length-to-diameter ratios up to 20:1.

Q: Can you match the surface finish of forged brass parts?
A: Yes. Our post-machining processes (e.g., vibratory finishing) achieve Ra 16 µin—equivalent to forged surfaces.

Q: Do you provide anti-tarnishing coatings for decorative brass components?
A: Absolutely. We offer clear chromate conversion coatings with 500-hour salt spray resistance per ASTM B117.

Q: How do you prevent lead contamination in drinking water components?
A: All C23000 red brass parts undergo XRF testing to ensure <0.25% lead content, exceeding NSF/ANSI 61 standards.
