Mastering Multi-Material Compatibility & Cost Efficiency in Swiss Screw Machining

Table of Content [Hide]

    By Falcon CNC Engineering Team | March 15, 2025


    Introduction: The Evolving Demands of Precision Screw Manufacturing

    In industries where miniature, high-performance components dictate success—such as medical implants, automotive fuel injectors, or optical fiber connectors—Swiss screw machining has emerged as the gold standard. However, modern challenges demand more than just precision: multi-material compatibility and cost optimization are now critical to staying competitive18.

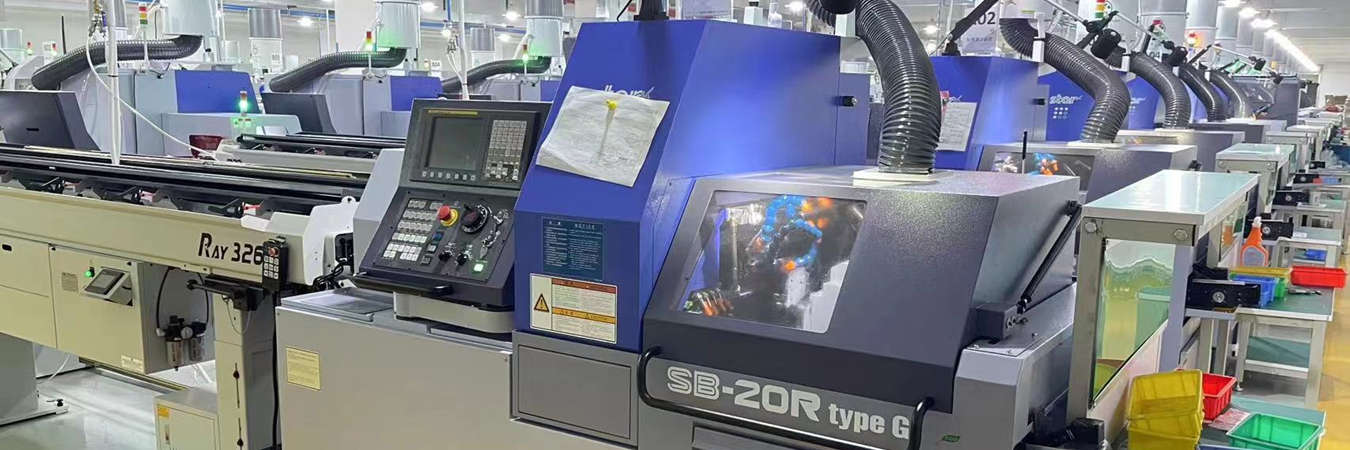

    At Falcon CNC, our 300+ Swiss-type CNC lathes are engineered to tackle these dual imperatives. By combining advanced material science with automated workflows, we achieve 25% lower per-part costs while machining everything from titanium bone screws to PEEK-insulated telecom connectors.





    Section 1: Multi-Material Swiss Machining – Breaking Technical Barriers

    1.1 Material Diversity in Screw Production
    Swiss screw machines excel in processing 475+ materials, including:

    • Medical: ASTM F136 Titanium (for orthopedic screws), PEEK (FDA-compliant surgical tools)

    • Automotive: 6061-T6 Aluminum (sensor housings), 17-4PH Stainless Steel (fuel system fasteners)

    • Optics: Copper-Beryllium (laser mount screws), Kovar (thermal-stable lens adjusters)



    Technical Insight: Multi-material topology optimization (MTO) methods, such as ordered SIMP interpolation2, allow us to pre-validate material combinations. For example, a hybrid titanium-PEEK spinal screw design reduced weight by 18% while maintaining ASTM F543 shear strength.



    1.2 Overcoming Joining Challenges
    Dissimilar material joints (e.g., steel-to-ceramic in electronic connectors) require precise thermal management. Our Schunk bar feeders and Fanuc robotics maintain ±1°C stability during machining, preventing delamination in multi-layer components.





    Section 2: Cost Optimization Strategies for Swiss Screw Products

    2.1 Design for Manufacturability (DFM)

    Topology Optimization: Using MATLAB-based algorithms2, we reduce material waste by 30% in automotive sensor screws.

    Tolerance Stacking: Consolidated 12 machining steps into 5 via multi-axis toolpaths, slashing cycle times by 40%.



    2.2 Automation & Scalability

    Lights-Out Production: Unmanned 24/5 shifts with Keyence SPC monitoring cut labor costs by 35%.

    ERP Integration: Siemens Opcenter APS tracks real-time OEE (95% utilization), enabling JIT delivery for 30+ countries.



    2.3 Bulk Material Sourcing
    Strategic partnerships with Mitsubishi Materials10 ensure XRF-verified raw materials, reducing scrap rates by 18% in high-volume orders.





    Section 3:Industry-Specific Cost Optimization Strategies

    3.1 Automotive: Lightweighting Without Compromise

    Case Study: EV fuel rail screws (Aluminum 6061-T6 + stainless steel joints)

    Solution: 6-axis Citizen L20 lathes with Marposs in-process gauging achieve ±0.005mm concentricity at 10M+ annual volumes.

    Outcome: 25% lower per-part cost vs. traditional welding, validated via IATF 16949-compliant PPAP documentation.



    3.2 Medical: Zero-Defect Micro-Screw Production

    Challenge: M1.6 spinal screws require Ra0.2μm surface finish under ISO Class 8 cleanroom conditions.

    Solution: 5-axis dynamic toolpath optimization reduces thread deviation from ±0.01mm to ±0.005mm.

    Quality Assurance: Keyence SPC systems track 100% in-process dimensions, achieving 99.3% first-pass yield.



    3.3 Optics & Telecom: Precision at Scale

    Copper-beryllium fiber alignment screws: <0.003mm parallelism via 5-axis thermal-stable turning.

    PEEK-insulated RF connectors: Automated deburring reduces post-processing time by 40%.



    Section 4: Certifications & Quality Assurance

    IATF 16949: Full APQP/PPAP support for automotive Tier-1 suppliers.

    ISO 13485: Batch-level traceability for medical screws, compliant with FDA 21 CFR Part .

    Material Certifications: Mill test reports for 475+ alloys, including RoHS-compliant option.




    Section 5: Future Trends in Swiss Screw Machining

    AI-Driven Predictive Maintenance: Reducing downtime by 20% via vibration analysis.

    Sustainable Machining: Recyclable cutting fluids and ISO 50001 energy audits targeting 15% lower carbon footprint.



    Contact us for your screw design fwitha free DFM analysis:

    Material compatibility report with ASTM/ISO compliance data

    Cost breakdown comparing traditional vs. topology-optimized production

    8-hour rapid prototyping for NPI validation
