1.**Introduction:** The Foundation of Precision Manufacturing
In modern manufacturing, precision is key. With various industries (aerospace, medical devices, etc), looking for smaller and smaller parts that are highly complex in design, one machining method has been steadily growing in importance — Swiss screw machining. Swiss screw machining is an innovative, precise, and fast process that has become a staple in manufacturing due to its demands for high production.
Whether you're an engineer, a purchasing agent, or just want to know more about the process of complex part production, this article is intended to be a robust foray into the scope of Swiss screw machining, including how it is different from CNC machining, and what tools and materials to use, but always focusing on what is critical from the search engine perspective.
2. **What is Swiss Screw Machining?**
Swiss screw machining is a type of precision machining developed in Switzerland for manufacturing watch components back in the 1800s. Since its creation, Swiss screw machining has continued to evolve into a method of producing precise components for the electronics, aerospace, and medical device industries.

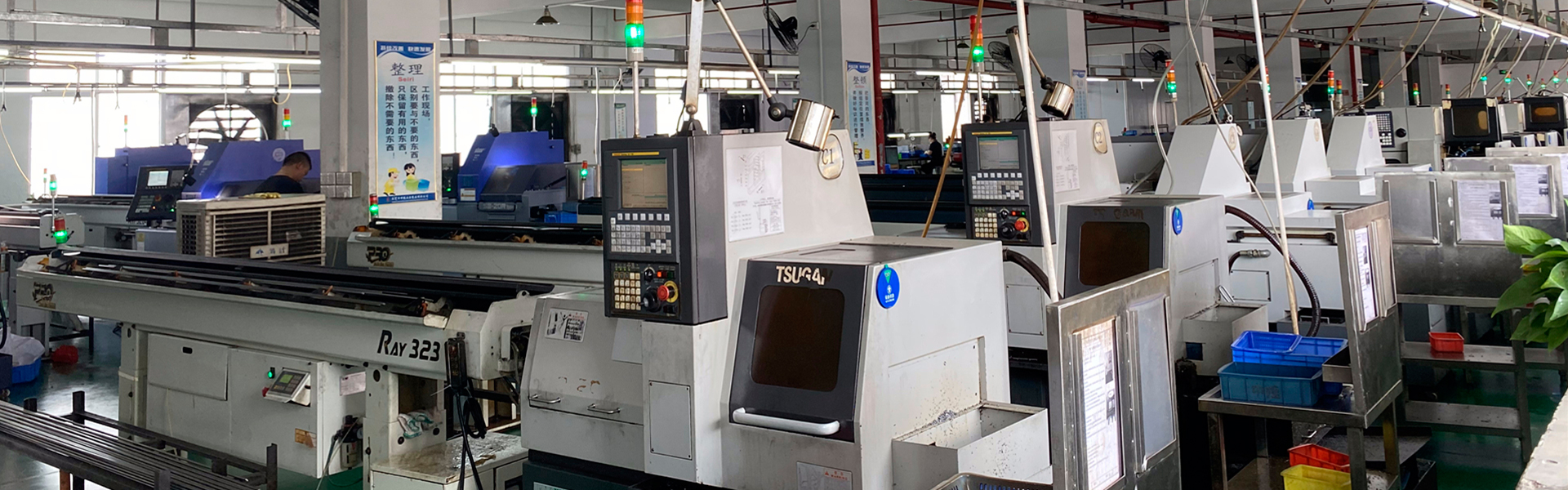

What makes this method special is the use of a sliding headstock lathe. Swiss-type lathes allow for the material (bar stock) to feed through a guide bushing and, as the material advances through the guide bushing, the cutting tools are applied in relative proximity supporting the part with less deflection, achieving better precision, while machining sharply tapered, slender, and complex rotary parts.
**Key Benefits:**
- Tight tolerances (up to +/-.0002")
- High-speed
- Ideal for small, cylindrical parts
- Very few secondary operations required
3.**What is Swiss Type Machining?**
Swiss type machining refers specifically to a machining process performed on Swiss type lathes. These machines allow for the use of multiple tools to perform operations simultaneously, often making them much more efficient than your average CNC. Unlike CNC turning, where the part remains stationary, Swiss machines feed the material past the tooling, enabling better control over micro-sized parts.
Swiss machining is particularly well suited for:
- Long and slender components
- Components with complex geometries
- Components that require high repeatability

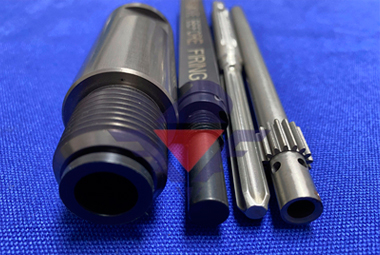

Common components produced are orthopedic implants, connectors, nozzles, shafts, medical screws, etc.
4. What is the difference between CNC and Swiss?
Although Swiss screw machining is technically a part of CNC machining, there are some key differences:
| Feature | CNC Turning | Swiss Screw Machining |
| Material Feed | Fixed in place | Slides through a guide bushing |
| Precision | Moderate to High | Ultra-High |
| Ideal Parts | Shorter, simpler parts | Long, slender, complex parts |
| Setup | Simpler | More planning |
| Tooling | Less simultaneous tooling | More simultaneous tooling |
Swiss machines can usually perform turning, drilling, milling, and threading in one set-up, decreasing lead time and costs.
5. Can a CNC machine make screws?
CNC machines can make screws, especially for custom designs or small batch runs. For longer runs of precision screws, especially with tight tolerances or for medical screws, Swiss screw machines are a better option.CNC lathes might not have the ability to keep extreme tolerances over long parts making them somewhat unsuitable for screws that are small-diameter and complex.
6. What Is A Screw Machine Also Called?
A screw machine can usually be called one of the following:
Swiss-turning lathe.
Automatic lathe.
Turning center.
Multi-spindle machine for production and high volumes.
Screw machine came from machines specifically manufactured to make screws and threaded parts quickly and efficiently. Now it references Swiss-style CNC, but also multi-spindle automatic machines.
7. What Is The Screw-Making Process Called?
The process of making screws is broadly defined as either thread rolling or thread cutting, depending on the method you used. In Swiss screw machining, the process usually involves:
Turning the body of the screw.
Threading the screw by using a cutting or rolling die.
Milling any features such as drive slots.
Deburring and polishing.
Inspecting pieces and quality control.
This is in the domain of precision machining.
8. What Machines Are Used To Make Screws?
There are a variety of machines you can use:
Swiss CNC Machines - High-precision and low tolerances.
Multi-Spindle Machines - Good for high-volume production.
CNC Lathes - Custom or short run parts.
Thread rollers - a thread is formed through pressing.
Automatic screw machines - used for continuous screw production.
Swiss screw machines are especially valued for their speed, repeatability, and very little material waste.
9. What types of materials cannot be CNC machined?
While most metals and plastics can be machined with CNC, not all materials will machine equally:
• Tempered glass
• Fiberglass—wreak havoc on tools
• Elastomers
• Foam and sponge-like materials
• Ultra-hard ceramics
The best materials for Swiss screw machines include:
• Stainless Steel
• Aluminum
• Brass
• Titanium
• Plastics such as PEEK or Delrin
Choosing the right material is important based on the application and how tight the tolerances are.
10. What Is the Raw Material for Making Screws?
Screws are usually made from metal bar stock. The materials of choice are:
• Stainless Steel—corrosion-resistant
• Brass—excellent machinability
• Titanium—often used for medical implants
• Aluminum—light weight applications
• Plastic—non-conductive applications
To get the most from machines, Swiss CNC machines often use precision-ground bar stock, which helps reduce vibration and gives consistent results when machining.
11. What Is Used in Swiss Screw Machining?
The tools you will find in Swiss screw machining include:
• Turning tools
• Parting tools
• Threading tools
• Live tooling (for cross-milling or drilling)
• Guide bushings
• Sub spindles
By coordinating a combination of these tools for a multi-axis machining a precision component is done in a fraction of time.
12. What Two Simple Machines Make a Screw?
A screw can be made from two simple machines:
An inclined plane that is wrapped around a shaft.
A cylinder which acts as the base or body.
These two machines elegantly and efficiently convert rotational force into linear motion—a principle that we still rely on in modern engineering.
Ready to bring precision to your next project?
Contact Falcon CNC Swiss today to discuss your custom screw machining needs. Whether it’s a prototype or full production, our experts will help you find the perfect solution.
FAQ: Swiss Screw Machine
Q1: What Industries Benefit from Swiss Screw Machining the Most?
A: Industries including medical devices, aerospace, electronics, and military, all benefit from Swiss screw machining. These industries often have a need for precision, complexity, and small part production.
Q2: Is Swiss machining only for screws?
A: No. This technology is also used for pins, shafts, connectors, implants, and any high-precision cylindrical part.
Q3: How fast will a Swiss machine produce parts?
A: Depending on the complexity of the part, using a Swiss screw machine would produce acceptable cycle times often as low as 10 seconds for simple parts, and taking longer than just a few minutes for more complex parts. Very little downtime.
Q4: What tolerance can you expect Swiss screw machines to deliver?
A: The best Swiss machines will deliver tolerances as tight as ±0.0002 inches (5 microns).
Q5: Do Swiss machines provide automation?
A: Yes. Many Swiss CNC machines and swiss designs for CNC setups are designed to run unattended operation 24/7 and operate using bar feeders and part catchers.
