How Are Small Parts Machined? The Science Behind Micro-Scale Precision

In industries where a human hair’s width (≈80µm) is considered coarse, Swiss machining and micro-manufacturing technologies craft components as small as Ø0.3mm with tolerances tight. From life-saving medical implants to micro-connectors enabling 5G networks, here’s how precision meets innovation.

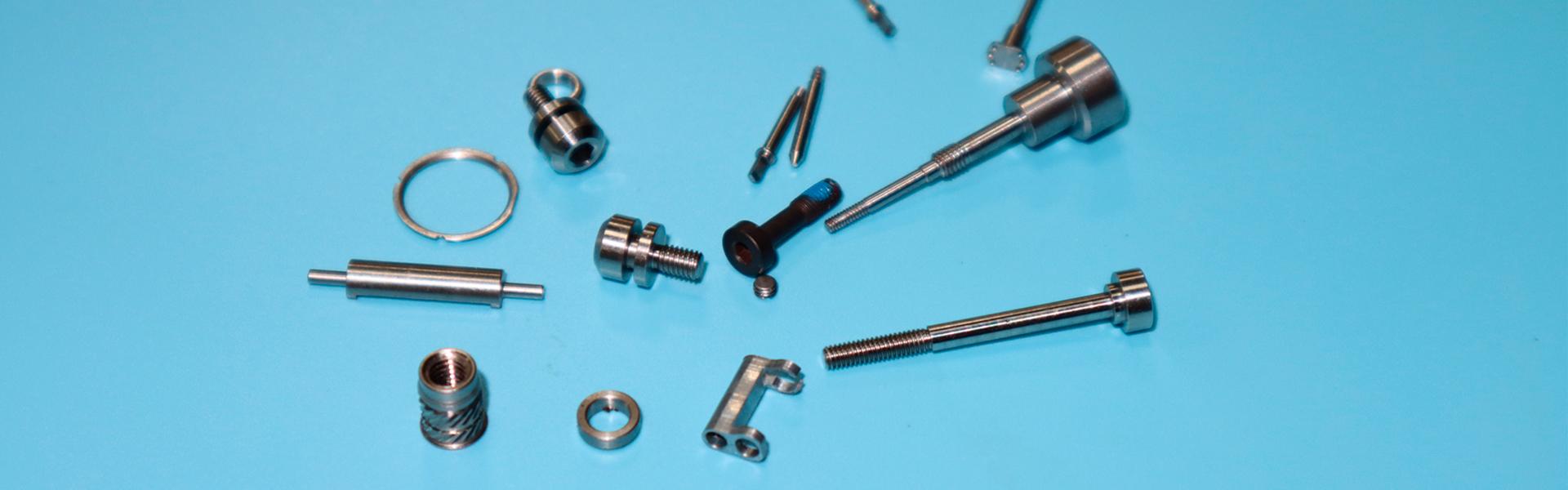

1. Introduction to Small Part Machining

Micro machining produces components smaller than 1mm, critical for:

• Medical: Spinal screws (Ra 0.2µm) and neural probes

• Electronics: 0.05mm-pitch connectors for IoT devices

• Automotive: Fuel injector nozzles with 0.1mm micro-channels

Over 78% of medical device manufacturers rely on micro machining for FDA-compliant parts.

2. What Is Micro Machining?

Micro machining removes material at micron-level scales, differing from conventional methods:

3. Materials Used in Small Part Machining

Key Materials & Challenges

Applications of Precision Small Parts

Medical: Ø0.4mm titanium bone screws with Ra 0.2µm1

Electronics: Gold-plated 5G connectors (0.05mm pitch)9

Automotive: Brass EV battery pins resistant to 700°C

Falcon CNC Swiss offers material certifications for ISO 13485-compliant medical parts

4. Machines for Micro Machining

CNC Swiss Machines

Sliding Headstock: Stabilizes Ø0.3–32mm bars within 0.1mm of tools

Live Tooling: 12+ tools for simultaneous milling/drilling

Sub-Spindles: Backwork features without re-fixturing

Supporting Technologies

Wire EDM: Cuts hardened steel with 0.02mm accuracy

Laser Micromachining: Femto-second lasers for CNT composites

5. CNC Swiss Machining for Small Parts

Swiss machines excel in producing screw machine parts like M1.0 fasteners:

Tolerances: ±0.001" on Ø0.5mm titanium pins

Efficiency: 15k medical screws in 48hrs with 98% material utilization

Complexity: 5-axis contouring for vascular stent patterns

6. High-Precision Tooling

Diamond-Coated Tools: Extend life by 200% in ceramic machining

Tool Monitoring: AI-driven wear detection reduces scrap by 30%

Advanced Techniques

High-Speed Machining (HSM): 50,000 RPM spindles for aluminum connectors

5-Axis Swiss CNC: Machines orthopedic screws in one setup

Laser Hybrid Systems: Combines Swiss machining with surface texturing

7. Quality Control in Micro Machining

Laser Scanning: Validates 0.5µm concentricity on lens mounts

CT Scanning: Detects internal voids in biodegradable implants

Statistical Process Control (SPC): Maintains CpK >1.67 for 10k+ batches

9. Falcon CNC Swiss: Precision Redefined

Certifications: ISO 13485, IATF 16949, and AS9100114

Capabilities: 300+ Swiss machines producing high precision components

Case Study: Reduced neural probe scrap rates by 85% for NeuroTech Solutions

Conclusion & Next Steps

Micro machining enables innovations once deemed impossible. For screw machine parts requiring microscopic precision, Falcon CNC Swiss delivers unmatched expertise.

Contact us to today for  Free Precision Audit
